トラニオンボールバルブVW-64

問い合わせ

お気に入り

VW-64

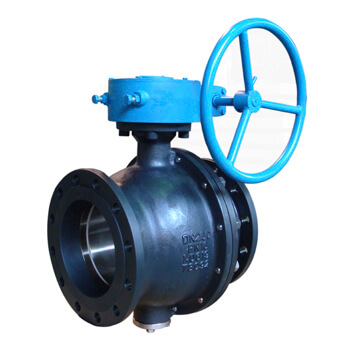

2-PC Trunnion Mounted Flanged Ball Valve
Full Bore
ISO 5211 Direct Mounting Type

概要

2-PC Flange Ball Valve, Trunnion Mounted, Full Bore
Pressure Rating: ANSI CL 150 / 300
Size: DN15 ~ DN300
ISO 5211 Direct Mounting Type
Stainless steel anti-blowout stem
Seat: RTFE
Ball: CF8M Solid Ball
Operate by Lever or Gear Box
Connection: ASME B16.5 RF Class 150/300
Wall thickness complies with ASME B16.34
Materials: Carbon steel or Stainless steel or Special Alloy steel (Alloy 20, 904L, Hastelloy, Inconel, Monel, Titanium, Duplex/Super Duplex Stainless Steels, Special material is available upon request.)
Safety/Quality Approvals: API 6D, CE, ISO9001, DNV approved manufacturer
Technical data sheet is available upon request.
