トラニオンボールバルブVW-53

問い合わせ

お気に入り

VW-53

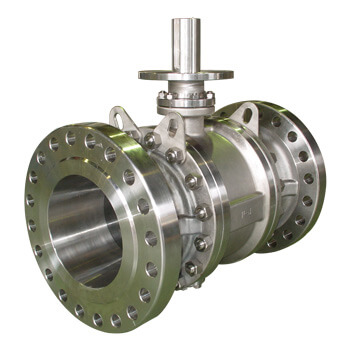

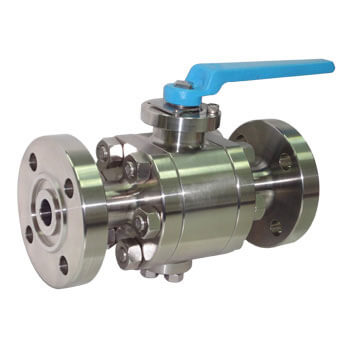

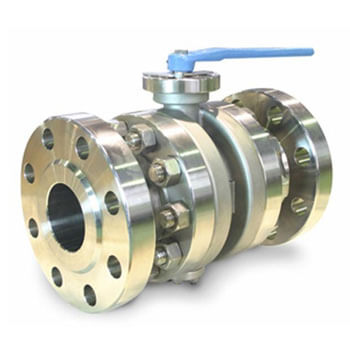

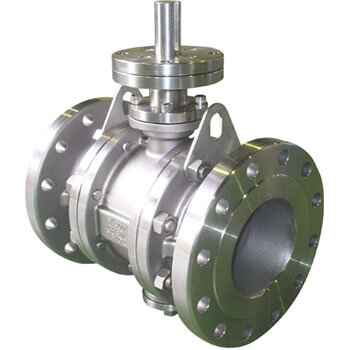

3-PC Trunnion Mounted Flanged Ball Valve
Reduced Bore
ISO 5211 Direct Mounting Type

概要

3-PC Flange Ball Valve, Trunnion Mounted, Reduced Bore
Pressure Rating: ANSI CL 150
Size: DN80 ~ DN500
ISO 5211 Direct Mounting Type
Stainless steel anti-blowout stem
Seat: RTFE
Ball: CF8M Solid Ball
Operate by Lever or Gear Box
Materials: Carbon steel or Stainless steel or Special Alloy steel (Alloy 20, 904L, Hastelloy, Inconel, Monel, Titanium, Duplex/Super Duplex Stainless Steels, Special material is available upon request.)
Safety/Quality Approvals: API 6D, CE, ISO9001, DNV approved manufacturer
Technical data sheet is available upon request.

仕様
