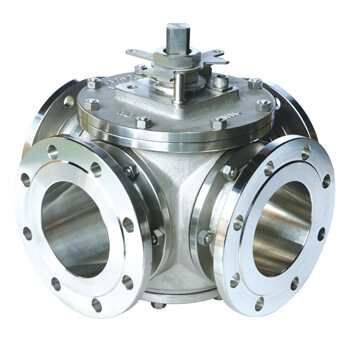

メタルシーテッドボールバルブK-508Q

K-508Q
共有
K-508Q
  • 4-Way Flanged Ball Valve
  • Full Bore, T-Port / L-Port / X-Port
  • Metal Seated
概要
  • 4-Way Flange Ball Valve
  • Full Bore, Metal Seated
  • T-Port / L-Port / X-Port (Double L Port)
  • Pressure Rating: ANSI Class 150 / 300 & EN 1092-1 PN16
  • Size: DN32 ~ DN300
  • Face to Face: Mfg. Standard
  • Stainless steel anti-blowout stem
  • Seat: SS 316 + Solder Stellite # 6 / HVOF
  • Ball: CF8M Solid Ball + Hard Chrome Plated / HVOF
  • Wall thickness complies with ASME B16.34 / EN 12516-1
  • Wide range of operating temperatures
  • Fire Safe Design
  • Low Torque Design
  • Wave Spring ( Inconel 750) design release torque with live-loaded function
  • Materials: Carbon steel or Stainless steel or Special Alloy steel (Alloy 20, 904L, Hastelloy, Inconel, Monel, Titanium, Duplex/Super Duplex Stainless Steels, Special material is available upon request.)
  • Safety/Quality Approvals: API 6D, CE, ISO9001, DNV approved manufacturer
  • Technical data sheet is available upon request
仕様
  • Shipbuilding / Repair
  • Marine / Offshore
  • Tanker
  • Chemical / Petrochemical
  • Refining
  • Power Generation
  • Oil / Gas
  • Pulp / Paper Industry
  • Water / Wastewater Treatment
