メタルシーテッドボールバルブK-507Q
問い合わせ
お気に入り
共有
K-507Q

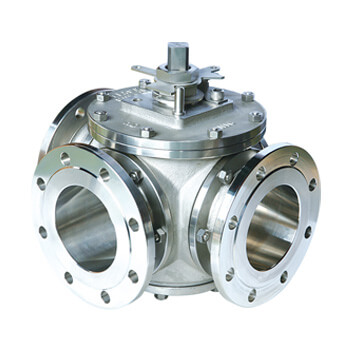

3-Way Flanged Ball Valve
Full Bore, T-Port / L-Port
Metal Seated
前へ
次
バック
概要
3-Way Flange Ball Valve
Full Bore, Metal Seated
T-Port and L-Port
Pressure Rating: ANSI Class 150 / 300 & EN 1092-1 PN16 / PN40
Size: DN32 ~ DN300
Face to Face: Mfg. Standard
Stainless steel anti-blowout stem
Seat: SS 316 + Solder Stellite # 6 / HVOF
Ball: CF8M Solid Ball + Hard Chrome Plated / HVOF
Wall thickness complies with ASME B16.34 / EN 12516-1
Wide range of operating temperatures
Fire Safe Design
Low Torque Design
Wave Spring ( Inconel 750) design release torque with live-loaded function
Materials: Carbon steel to Stainless steel to Special Alloy steel (Alloy 20, 904L, Hastelloy, Inconel, Monel, Titanium, Duplex/Super Duplex Stainless Steels, Special material is available upon request.)
Safety/Quality Approvals: API 6D, CE, ISO9001, DNV approved
manufacturer
Technical data sheet is available upon request
仕様
Shipbuilding / Repair
Marine / Offshore
Tanker
Chemical / Petrochemical
Refining
Power Generation
Oil / Gas
Pulp / Paper Industry
Water / Wastewater Treatment
,
