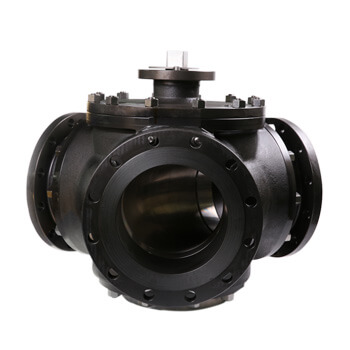

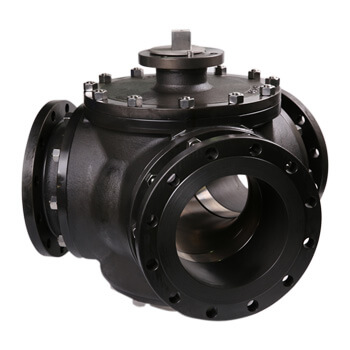

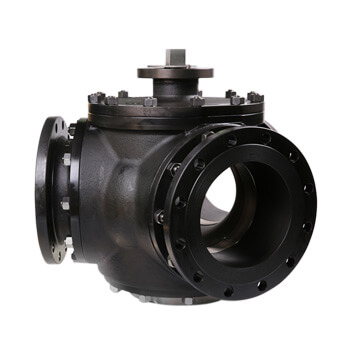

多方向ボールバルブY-507

  • Y-507
  • Y-507
  • Y-507
  • Y-507
共有
Y-507
  • 3-Way Flanged Ball Valve
  • Full Bore
  • Y-Port
概要
  • 3Way Flanqu Ball Valve.Full Bore
  • Y-Port
  • Pressure Rating: ANSI Class 150/300
  • Size: DN50 ~ DN300
  • Face to Face: Mfg. Standard
  • Stainless steel anti-blowout stem
  • Seat RTFE
  • Ball: CF8M Solid Ball
  • Wall thickness compties with ASME B16.34
  • Materials: Carbon steel or Stainless steel or Special Alloy steel (Alloy 20,904L, Hastelloy, Inconel, Monel, Titanium, Duplex/Super Duplex Stainless Steels, Special material is available upon request.)
  • Safety/Quality Approvals API 6D, CE, ISO, DNV approved manufacturer
  • Technical date sheet is available upon request.
仕様
  • Shipbuilding/ Repair
  • Marine/ Offshore
  • Tanker
  • Chemical/ Petrochemical
  • Refining
  • Power Generation
  • Oil/Gas
  • Pulp/ paper Industry
  • Water/ Wastewater Treatment
