多方向ボールバルブK-607

K-607
共有
K-607

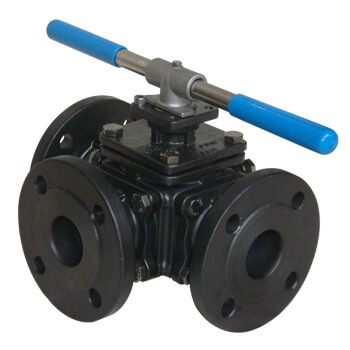

  • 3-Way Trunnion Mounted Flanged Ball Valve
  • Full Bore
  • L Port
概要
  • 3-Way Trunnion Mounted Flange Ball Valve, Full Bore
  • L-Port
  • Pressure Rating: EN 1092-1 PN16 / 40
  • Size: DN32 ~ DN100
  • ISO 5211 Direct Mounting Type
  • Face to Face: Mfg. Standard
  • Stainless steel anti-blowout stem
  • Seat: RTFE
  • Ball: CF8M Solid Ball
  • Materials: Carbon steel or Stainless steel or Special Alloy steel (Alloy 20, 904L, Hastelloy, Inconel, Monel, Titanium, Duplex/Super Duplex Stainless Steels, Special material is available upon request.)
  • Technical data sheet is available upon request.
仕様
  • Shipbuilding / Repair
  • Marine / Offshore
  • Tanker
  • Chemical / Petrochemical
  • Refining
  • Power Generation
  • Oil / Gas
  • Pulp / Paper Industry
  • Water / Wastewater Treatment
