VW-36 T/S/B Q

概要

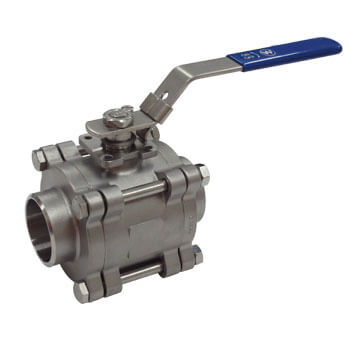

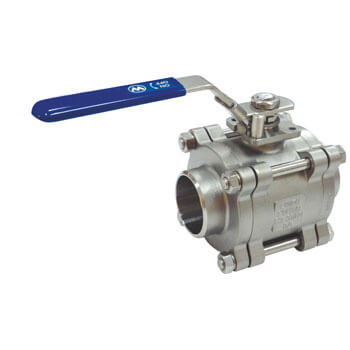

3-PC Ball Valves
Full Bore, Metal Seated
End Connection: Threaded End (NPT / BSP / DIN / BSPT) / Socket Weld End / Butt Weld End
Pressure Rating: PN100
Size: DN 15 ~ DN 50
Stainless steel blowout proof stem
Seat: SS316 + Solder Stellite # 6 / HVOF
Ball: CF8M Solid Ball + Hard Chrome Plated / HVOF
Wall thickness complies with ASME B16.34 / EN 12516-1
Wide range of operating temperatures
Fire Safe Design
Low Torque Design
Zero Leakage
Wave Spring ( Inconel 750) design release torque with live-loaded function
Material: Carbon Steel, Stainless steel, Special Alloy steel (Alloy 20, 904L, Hastelloy, Inconel, Monel, Titanium, Duplex/Super Duplex Stainless Steels, Special material is available upon request.)
Safety/Quality Approvals: API 6D, CE, ISO, DNV approved manufacturer
Technical data sheet is available upon request
