صمام الكرة المعدني JS-11Q

  • JS-11Q
  • JS-11Q
JS-11Q

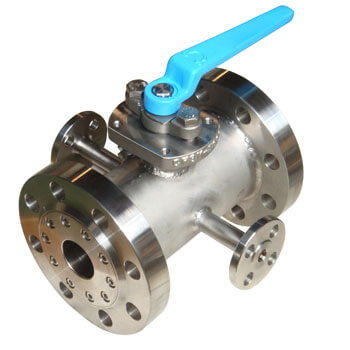

  • 1-PC Jacket Flanged Ball Valve
  • Full Bore
  • Metal Seated
Product Description
  • 1-PC Jacket Flange Ball Valve
  • Metal Seated.
  • Pressure Rating: ANSI Class 150 / 300
  • Size: 1-1/2" x 1/2" ~ 12" x 8"
  • Stainless steel anti-blowout stem
  • Seat: SS 316 + Solder Stellite # 6 / HVOF
  • Ball: CF8M Solid Ball + Hard Chrome Plated / HVOF
  • Wall thickness complies with ASME B16.34 / EN 12516-1
  • Fire Safe Design
  • Low Torque Design
  • Zero Leakage
  • Wave Spring ( Inconel 750) design release torque with live-loaded function
  • Jacket connection with Threaded
  • Jacketed design effectively maintains the temperature of the flow media.
  • Materials: Carbon steel or Stainless steel or Special Alloy steel (Alloy 20, 904L, Hastelloy, Inconel, Monel, Titanium, Duplex/Super Duplex Stainless Steels, Special material is available upon request.)
  • Safety/Quality Approvals: API 6D, CE, ISO9001, DNV approved manufacturer
  • Technical data sheet is available upon request
Product Specification
  • Shipbuilding / Repair
  • Marine / Offshore
  • Tanker
  • Chemical / Petrochemical
  • Refining
  • Power Generation
  • Oil / Gas
  • Pulp / Paper Industry
  • Water / Wastewater Treatment
