JS-11

1-PC Jacket Flanged Ball Valve
Full Bore

Product Description

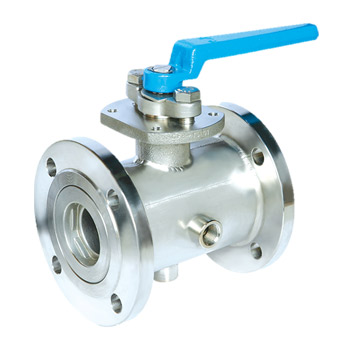

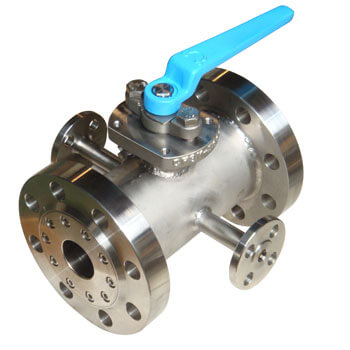

1-PC Jacket Flange Ball Valve
Pressure Rating: ANSI CL 150 / 300
Size: 1-1/2" x 1/2" ~ 12" x 8"
Stainless steel anti-blowout stem
Seat: RTFE / Other material is available upon request.
Ball: CF8M Solid Ball
Wall thickness complies with ASME B16.34
Jacket connection with Threaded
Jacketed design effectively maintains the temperature of the flow media.
Material: Carbon steel or Stainless steelor Special Alloy steel (Alloy 20, 904L, Hastelloy, Inconel, Monel, Titanium, Duplex/Super Duplex Stainless Steels, Special material is available upon request.)
Safety/Quality Approvals: API 6D, CE, ISO9001, DNV approved manufacturer

Product Specification
