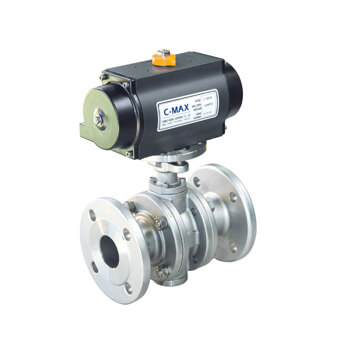

HMT21-F
- Durable 3PC Flanged Ball Valve, metal seat, direct mounting full bore.
- Flange Dimension: ANSI B 16.5 CL 150 / 300 / 600
- EN 1092-1 PN 10 / 16 / 25 / 40
- JIS 10K / 20K
- Integral flanges
- API 6FA Fire safe design
- 3PC Flanged Ball Valve have a great Shutoff
- High Cv
- There is a unobstructed Flow path in 3PC Flanged Ball Valve
- Wave ( Inconel 750 ) Spring design release torque with live-loaded function
- Stainless steel blow out proof stem
- Permits in-line access for seat replacement
- Solid stellited seats with large sealing faces
- Backup seals Graphite to 1,000°F (538°C)
- Wall thickness complies with ASME B16.34
- Stainless steel ball, hard chrome plated
- Ball and seat are mate lapped for zero leakage shutoff
- Loaded upstream seat for constant seat loads
- press in downstream seat
- Single piece Flanged Ball Valve, Regular Bore design in 50 to 100mm
- Flanged to ANSI 150# to 600#
- Materials : Carbon steel, Stainless steel, Special Alloy steel (Special material is available according to requirements.)
