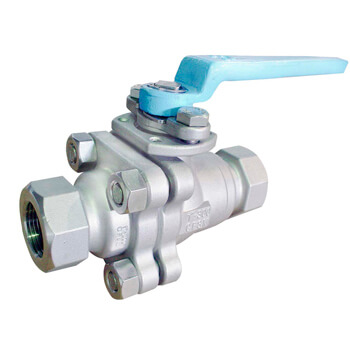

Metal Steated Ball Valve
VW-52TQ

Low torque transfer= Flow Benefit
Zero Leakage = Cost Saving
Stringent Testing = Zero Defect

  • 2PC Flange Ball Valve, Full Bore
  • Flange Dimension: ANSI B 16.5 CL 150 / 300
  • EN 1092-1 PN 10 / 16 / 25 / 40
  • Integral threaded body
  • API 6FA Fire safe design
  • Threaded Ball Valve with good shutoff
  • High Cv
  • Unobstructed Flow path
  • Wave ( Inconel 750 ) Spring design release torque with live-loaded function
  • Stainless steel blow out proof stem
  • Permits in-line access for seat replacement
  • Solid stellited seats with large sealing faces
  • Backup seals Graphite to 1,000°F (538°C)
  • Wall thickness complies with ASME B16.34
  • Stainless steel ball , hard chrome plated
  • Ball and seat are mate lapped for zero leakage shutoff
  • Loaded upstream seat for constant seat loads
  • press in downstream seat
  • 2PC Threaded Ball Valve, Full Bore design in 15 to 50 mm
  • Materials : Carbon steel, Stainless steel, Special Alloy steel (Special material is available according to requirements.)
  • Threaded type: NPT/BSP/DIN/BSPT
