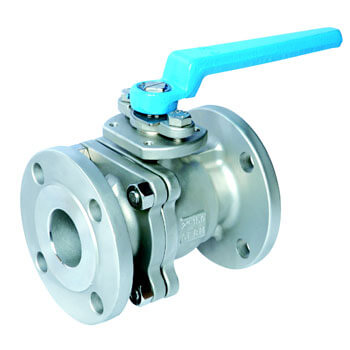

2PC Flanged Ball Valve VW-52Q
Home > Products > Metal Seated Series > VW-52Q
VW-52Q
Low torque transfer= Flow Benefit
Zero Leakage = Cost Saving
Stringent Testing = Zero Defect
- High quality Full Bore Metal Seated 2PC Flange Ball Valves.
- Flange Dimension: ANSI B 16.5 CL 150 / 300 / 600
- EN 1092-1 PN 10 / 16 / 25 / 40
- JIS 10K
- Integral flanges
- API 6FA Fire safe design
- Unobstructed Flow path
- Wave ( Inconel 750 ) Spring design release torque with live-loaded function
- Stainless steel blow out proof stem
- Permits in-line access for seat replacement
- Solid stellited seats with large sealing faces
- Backup seals Graphite to 1,000°F (538°C)
- Wall thickness complies with ASME B16.34
- Stainless steel ball , hard chrome plated
- Ball and seat are mate lapped for zero leakage shutoff
- Loaded upstream seat for constant seat loads
- press in downstream seat
Two piece Flanged Ball Valve, Full Bore design in 15 to 300 mm
Materials : Carbon steel, Stainless steel, Special Alloy steel (Special material is available according to requirements.)
Flanged to ANSI 150# to 600#
