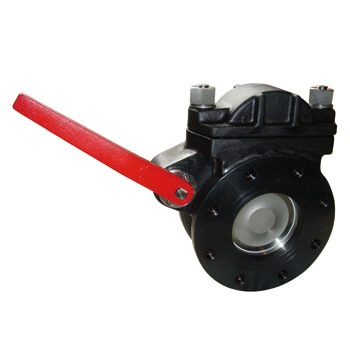

BFV-R8
BFV-R8

Taiwan Patent No.: M33807
China Patent No.: ZL 2008 2 0002101.2

Blind Flange Valve Sale Point:

  • Quick operation and trouble-free service, In the closed status, any liquid or gas cannot leak to the downstream
  • Untrained 1-2 person can operate with ease and safety.
  • Blind Flange Valve with simple and solid structure needs minimal maintenance only for sealing gasket replacement.
  • Blind Flange Valve has solid structure and very short face to face dimension.
  • Blind Flange Valves offer: ANSI, DIN, JIS…..
  • When disc closed, can remove top cover to check inside valve body.
  • In valve bottom have plug to void surplus fluid.
  • When disc closed, can remove top cover to check inside valve body.
  • After disc open can place in side valve, save space.

Blind Flange Valves are suitable to be applied in:

  • Crude oil products
  • Chemical Tanks. LPG and LNG carries
  • Rigs. Refineries. Terminals
  • Chemical and Petrochemical industries.

The design meets the requirements of:

  • Full segregation between different fluids.
  • Double shut off in one position
  • Safety against wrong operation
  • Drainage of valve body
  • Visual inspection
  • Blind Flange Valve with superior quality and good price
  • Blind Flange Valve with simple and efficient design
  • Small over all dimensions
  • Full flow

Size:

  • DN50~DN300 (2"~12")

Pressure Class

  • DIN 10 / 16 / 25 / 40
  • JIS 10K / 16K / 20K /30K
  • ANSI 150LBS

Material:

  • Body: Standard in WCB/CF8/CF8M. (Special material is available according to requirements.)

DNV Certificate No.: P-13002
Taiwan Patent No.: M33807
China Patent No.: ZL 2008 2 0002101.2
