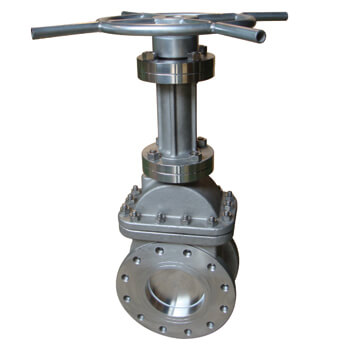

BFV-R5/BFV-R7

Home > Products > Blind Flange Valves > BFV-R5/BFV-R7

BFV-R5/BFV-R7
BFV-R5/BFV-R7

Taiwan Patent No.: M314165

Blind Flange Valves Sale Point:

  • Quick operation and trouble-free service, In the closed status, any liquid or gas cannot leak to the downstream
  • Simple and solid structure of Blind Flange Valves needs minimal maintenance only for sealing gasket replacement
  • Flange Standard offer: ANSI, DIN, JIS…..etc.
  • Operating and keep pipe inside pressure and vacuum
  • Safe operating, damage fluid will be not expose or have leak problem to jeopardizes while labor operate
  • Only one operator, safe time and energy
  • No tools, Turns hand wheel, then swing or sliding the blind plate without tools and cranes.
  • Plug in bottom to leak out extra fluid.

Blind Flange Valves can be applied into many Industries, such as :

  • Crude oil products
  • Chemical Tanks. LPG and LNG carries
  • Rigs. Refineries. Terminals
  • Chemical and Petrochemical industries.

The design of Blind Flange Valves meets the requirements of:

  • Full segregation between different fluids.
  • Double shut off in one positon
  • Safety against wrong operation
  • Drainage of valve body
  • Visual inspection
  • Quality and cost
  • Blind Flange Valves with simple and efficient design
  • Small over all dimensions
  • Full flow

Blind Flange Valves can be produced according to customers' specifications.

Size:

  • DN50~DN300 (2"~12")

Pressure Class

  • DIN 10 / 16 / 25 / 40
  • JIS 10K / 16K / 20K /30K
  • ANSI 150LBS

Material:

  • Body: Standard in WCB/CF8/CF8M. (Special material is available according to requirements.)

DNV Certificate No.: P-13002

Taiwan Patent No.: M314165
